| Drive System | Hydraulic control unit with indirect chain action |
| Rate Speed | Europe: max. 0.15 m/s (2006/42/EC) |
| Travel Height | Open Cabin height: 900-15100 mm Enclosed Cabin height: 900 – 13600 mm |
| Number Of Stops | Max. 6 Stops Per Lift |
| Doors | Max 2 doors per floor, or 12 doors per lift |
| Type of Access | Front, Lateral, Opposite or Adjacent |
| Pit Requirements | 120mm required. If Pit is not possible, a ramp can be used. |
| Shaft Type | Metallic structural shaft or masonry shaft |
| Shaft Top Height | Open cabin: min. 2100 mm depending on doors and shaft type Enclosed cabin with folding doors: minimum 2240 mm Enclosed cabin with sliding doors: minimum 2450 mm |
| Controls | Open cabin: Hold to run Enclosed cabin:Automatic one-touch + automatic controls on landings |
| Applications | Indoor or outdoor |
| Emergency Lowering | Battery operated emergency lowering system |
| Power | Power supply is 1-phase 230 V 50/60Hz. Control voltage of 24V. Maximum power: 3kW. Circuit breaker/RCD: 116A tripping curves C/ 30mA Class A or B |
| Rated Load | Rated load of 250-450kg depending on cabin size |
Future-Proof your
Forever Home
with a Altura Home Lift
Altura Home Lift
Stylish-Luxury-Compact

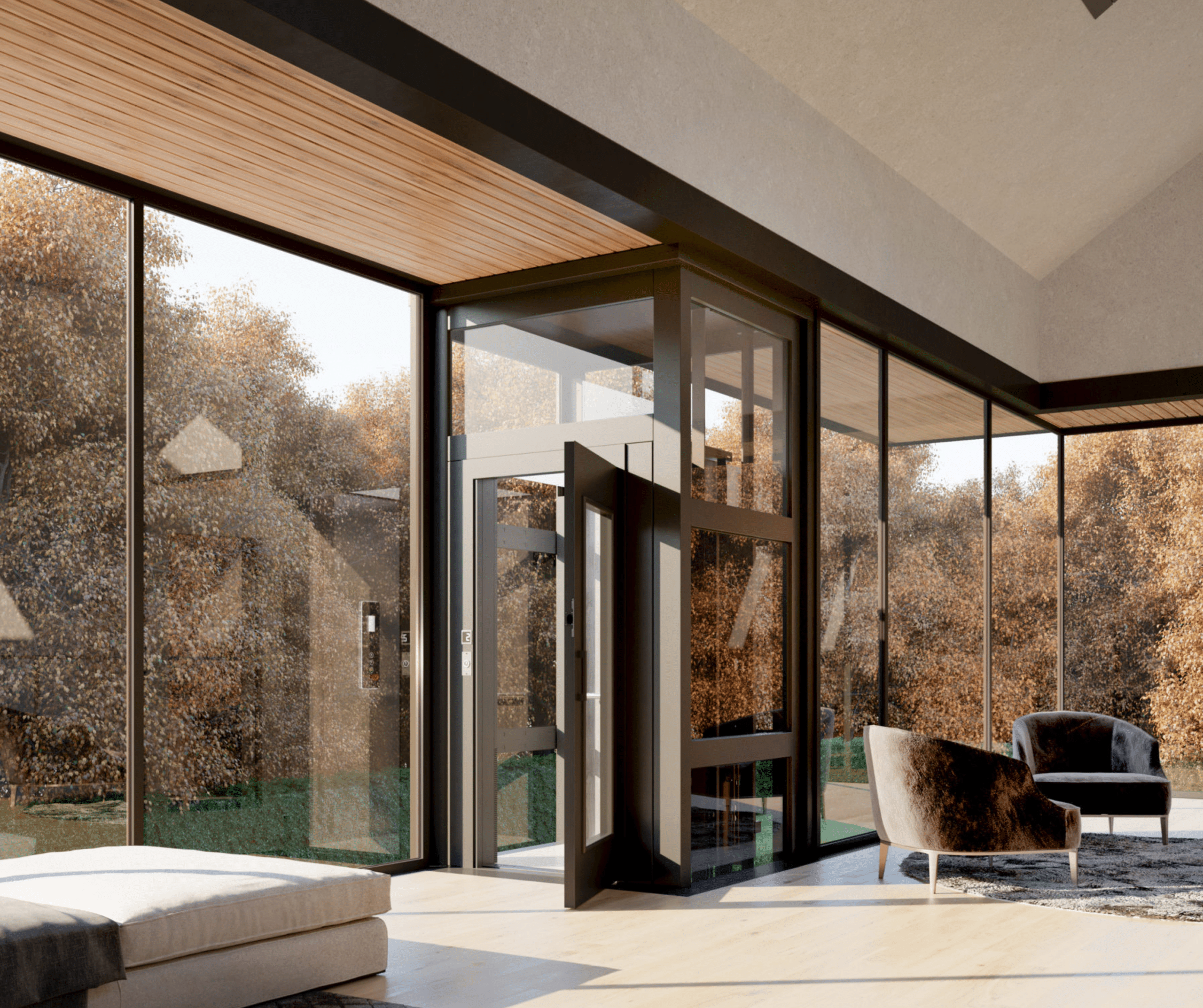

Altura Platinum (H200)
The Altura Platinum also known as the H200, is a symbol of versatility and reliable performance in home elevators. Powered by dependable hydraulic technology, it is designed to suit a variety of spaces, both indoor and outdoor, in public or private settings.
This lift comes with the option of a metallic shaft or can be integrated into a masonry shaft, offering flexibility in installation. The Altura Platinum is not just an elevator; it’s a customizable journey to comfort and style, available in numerous sizes, configurations, and finishes to perfectly match your residential or light commercial needs. Where luxury meets adaptability and design meets functionality.
Standard sizes below, custom sizes also available

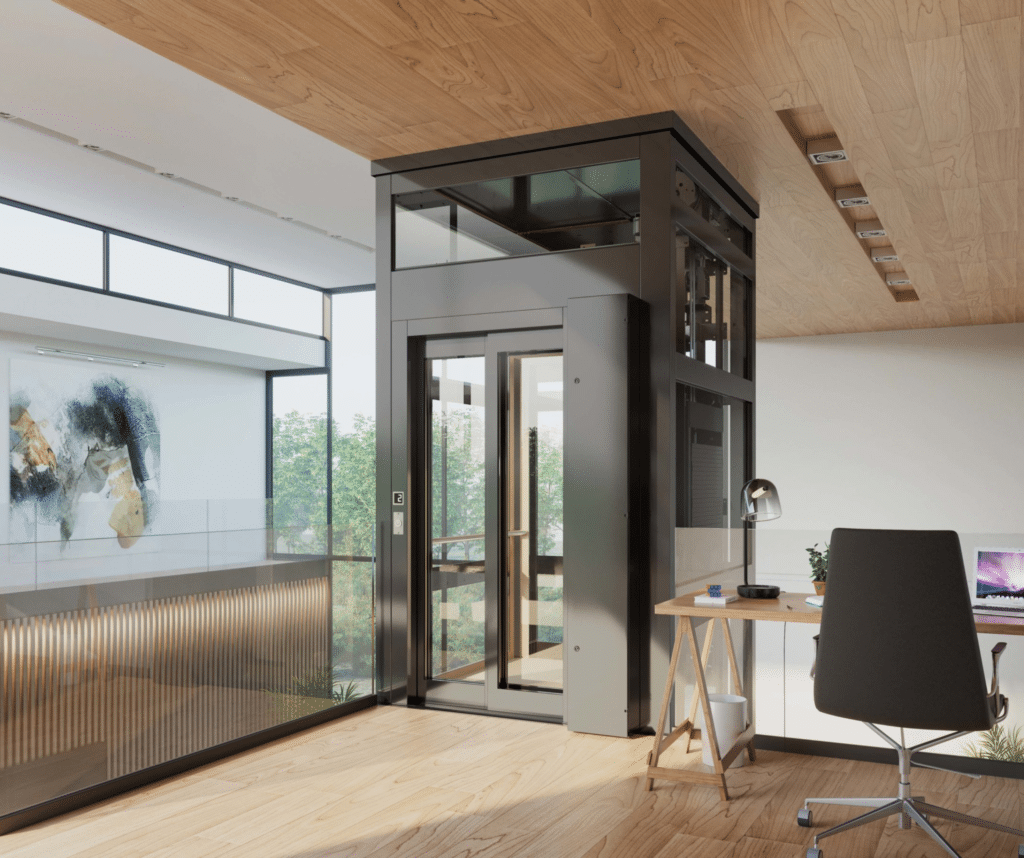

Altura Diamond (H300)
Introducing the Altura Diamond/ H300: a pinnacle of quiet luxury in home elevators. Powered by an innovative gearless motor and cogbelt, it offers a ride so smooth and silent, it’s quieter than a whisper. The design, customizable to fit any interior, speaks volumes of elegance without saying a word.
Whether housed in masonry or a sleek glass frame, the Altura Diamond blends seamlessly with your home’s aesthetic, providing an effortlessly luxurious ascent and descent. Opt for the Altura Diamond to elevate your home with unparalleled sophistication and tranquility.
| TECHNICAL COMPLIANCE | The Altura Diamond lift meets all compliance requirements, including Machinery Directive 2006/42/EC, Reference standard: EN81-41 |
| DRIVE SYSTEM | Cogbelt and counterweight system driven by a gearless motor |
| RATE SPEED | Europe: max. 0.15 m/s (2006/42/EC). Up to 0.4 m/s outside Europe, where permitted by local regulations. |
| TRAVEL HEIGHT | 1100-18000 mm |
| NUMBER OF STOPS | Max. 6 Stops Per Lift |
| DOORS | Max 2 doors per floor, or 12 doors per lift |
| TYPE OF ACCESS | Front, Lateral, Opposite or Adjacent |
| PIT REQUIREMENTS | Metallic shaft – 140mm. If a pit is not possible, a ramp can be used. Masonry shaft – 140 or 250 mm depending on configuration. |
| SHAFT TYPE | Metallic structural shaft or masonry shaft |
| SHAFT TOP HEIGHT | Structural Shaft: 2450 – 2630 mm Masonry Shaft: 2350 – 2450 mm |
| CABIN TYPES | Fully enclosed with sliding or folding doors |
| CONTROLS | Automatic one-touch controls on cabin and landing. Call reservation on landings |
| APPLICATION | Indoor or outdoor |
| EMERGENCY LOWERING | Battery operated emergency lowering system with uninterruptable power supply (UPS) |
| POWER | Power supply is 1-phase 230 V 50/60Hz 16 A. Control voltage of 24V. Maximum power: 2.8kW. Circuit breaker/RCD: 116A tripping curves C/ 30mA Class A or B |
| RATED LOAD | Rated load of 250-400kg depending on cabin size |
Standard sizes below, custom sizes also available
We have been working with Access since 1987, they have been supplying stairlifts from their location in Teesside since 1976, when the company was founded as “Project and Design”, manufacturing the Stair-El stairlift for private customers and local authorities.
Since 1999 they have been part of one of the world’s leading elevator companies, TK Elevator. Today, as the reseller division of TK Access Solutions Ltd., they supply a network of partners across the globe with stairlifts, platform lifts and home lifts.
Our Accreditations
Only Lifts "The Quality of Service You Get from
the ‘Big Boys’ with an Added Personal Touch"
Get Your Altura Home Lift Survey
Request a free survey and assessment from a Level 4-qualified Trusted Assessor to determine the right lift for you. You’ll receive a no-obligation quote based on not just your current needs but your future needs too.
Download the Altura Home Lift Brochures
The benefits of an Altura Home Lift
-
Altura Home Lifts are designed to be installed quickly and efficiently, so they won’t cause too much disruption to you or your house
-
Both the Altura Diamond (H300) and the Altura Platinum (H200) have many different customisable design features, so you can be sure they will fit into any space perfectly
-
The Altura lifts are known for their exceptional smooth and quiet travel from floor to floor
Commonly asked questions
Can an Altura home Lift take a wheelchair?
Yes, some Altura home lifts can be designed to accommodate wheelchairs. Certain sizes within the Altura range are suitable for wheelchair users and conforms to all relevant accessibility standards. They can be equipped with wider entrances, spacious cabins, and features like ramps or foldable seats to facilitate wheelchair accessibility.
How many floors can an Altrua home lift travel?
The Altura Home Lift can travel up to 5 floors making it one of the most versatile home lifts when it comes to travel distance
Will my walls be strong enough for an Altura Home Lift?
Home lifts require appropriate structural support, and it’s important to consult a professional to assess the strength of your walls. In some cases, additional support may be necessary, such as the installation of load-bearing walls or structural modifications to ensure the lift is properly supported.
Will there be a step into the lift?
Some models may have a small ramp or threshold at the entrance, while others can be designed with a flush floor that eliminates the need for a step. In this case a shallow pit is required.
