Expert design and craftsmanship

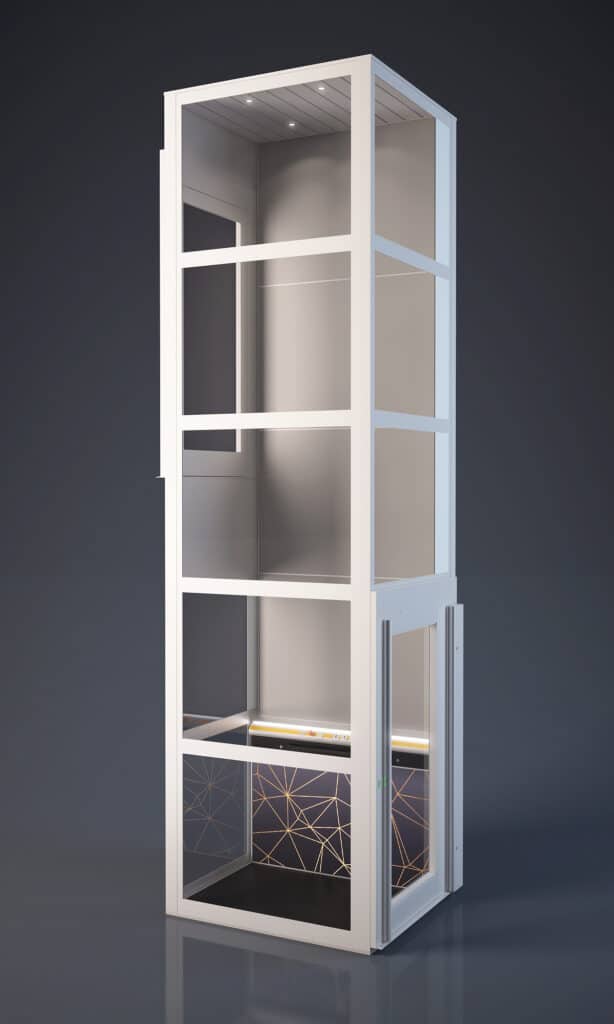

Barduva SB 200 (Miesian)

The SB200 vertical platform lift is an ideal accessibility feature for private residences as well as public venues like healthcare facilities, educational institutions, and recreational complexes.

It is crafted to support individuals with mobility challenges, featuring a generously-sized platform to comfortably fit a wheelchair and another person. Equipped with auditory signals and Braille inscriptions for ease of use by those with visual impairments, this lift combines spaciousness with cost-efficiency.

It boasts flexible installation options, suitable for both indoor and outdoor environments, alongside stairs, within existing shafts, or as a stand-alone feature in open areas.

  • Spacious design
  • Energy-saving technologies
  • Easy to install and maintain
  • Can be used in various locations
  • Customizable platform dimensions
  • Durable screw drive
Drive system: Screw & Nut
Nominal load 400 kg / 5 persons
Lifting speed: 0.15 m/sec (9 m/min)
Lifting height: Up to 13 meters
Number of stops (floors): Up to 6
Platform dimensions (length x width, mm) 1100 x 1400

1070 x 1485

1150 x 1485

*Other dimensions available
Dimensions of the shaft (length x width, mm 1500 x 1460

1460 x 1540

1540 x 1540

*custom measurements available
Door dimensions (width x height, mm) 900 x 2000 (when 1100 x 1400 platform)

940 x 2000* custom measurements available
Gates (width x height, mm) 900 x 1300 (when 1100 x 1400 platform)

940 x 1300
Door configuration Opens from the right or left, up to 3 doors per stop
Shaft walls: Steel metal or tempered glass panels
Standard colors RAL 9006 (light grey aluminum)
* lift can be painted in any RAL color
Smooth acceleration/deceleration: Standard equipment
Power supply: 220-230 V, 1 phase, 25A
380-400 V 3 phases, 16A, 50 or 60 Hz
Motor 2.2 kW
Noise level: Less than 70 dB
Control system Micro controller
Technical safety equipment Protective edge around the platform, emergency stop buttons on the platform and in the shaft, emergency stop switches, electronic speed control, overload detectors, door opening and locking control, screw shock absorber sensors, electronic engine operation control
European standard compliance: EN 81-41:2010,

EN 81-20:2020,

EN 81-58:2018
Panel Design options

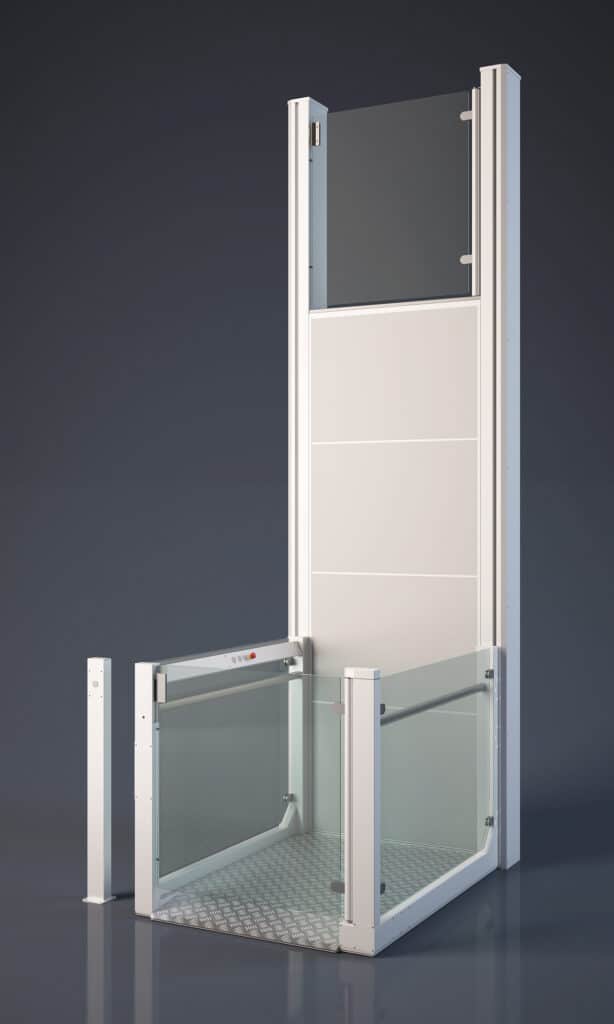

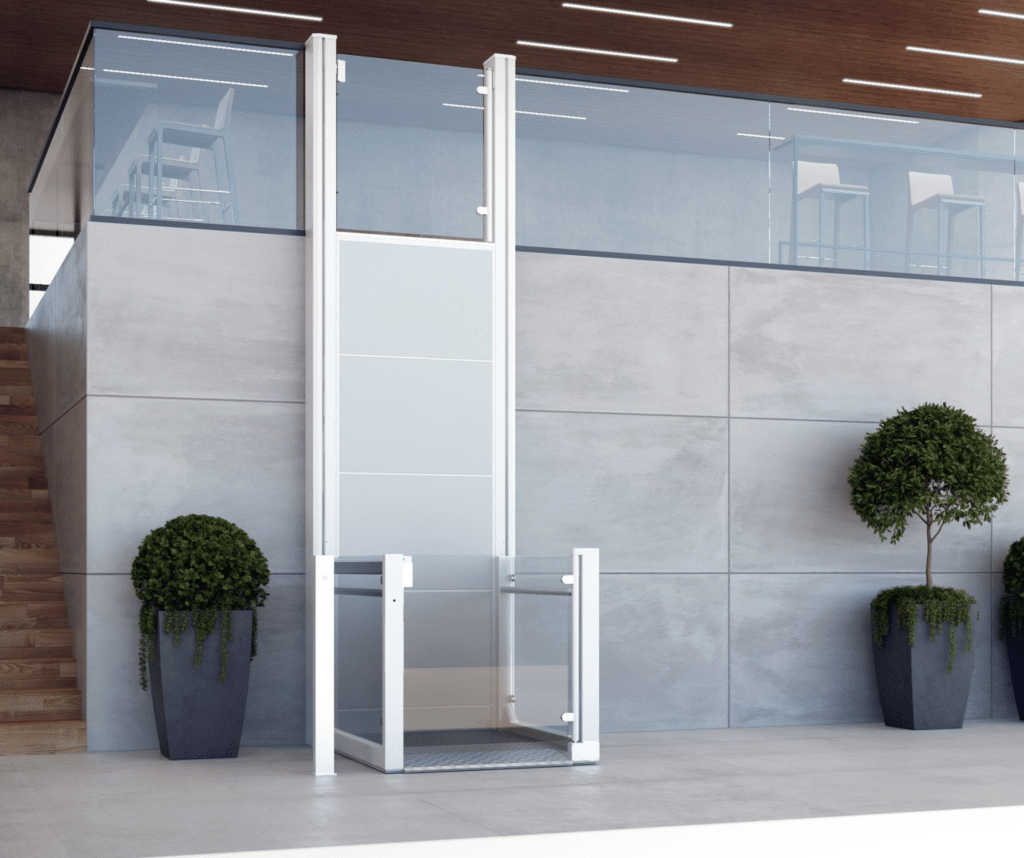

Barduva RB 150 (Accolade)

The RB150 platform lift is not just a mode of transport; it’s a blend of functionality and style for those with mobility challenges.With an adjustable height range from a convenient 600 mm up to a considerable 3000 mm, it’s engineered to meet diverse accessibility needs across a variety of settings. It’s an ideal fit for private homes craving a touch of modernity, or for public spaces looking to enhance accessibility without sacrificing aesthetics.

This lift stands as a testament to economical and spatial efficiency, with a design that allows for straightforward integration into existing structures or new constructions, both indoors and outdoors. Its streamlined operation and ability to fit into smaller spaces make it a smart addition for commercial entities and residential areas alike, ensuring accessibility is a given, not a luxury.

  • Spacious, modern design
  • Takes up little space
  • No shaft required
  • Very quiet operation
  • Easy to use
  • Quick and easy to install and maintain
Lifting height:    From 600 mm to 3000 mm
Number of stops:  2
Rated load:  400 kg
Platform size: 1100 x 1400 (standard)
External dimensions: 1300 x 1760 (standard)
Cabin height:  1100 mm
Doors: 950 x 1100 mm
Drive type: Belt drive
Power supply: 220–240V, 1 phase, 25A 380–400V, 3 phase, 16A, 50Hz
Lighting: Illuminated buttons
Handles: Integrated into the lift cabin (on both sides)
Flooring: Non-slip textured rubber or non slippery aluminium plate
Color:  RAL 9006 (standard)

BARDUVA was founded in 1996. The company specializes in the production of Vertical Platform Lifts, Open platform Lifts, Pergolas and Hangar Doors. Also always expanding to new products.

Continuous improvement, production capacity expansion, modern technologies and skilled workers’ efforts enable them to offer their production.
