Expert design and craftsmanship

Barduva SB 200 (Miesian)

The SB200 vertical platform lift is a brilliant solution designed with everyday needs in mind. Whether it’s installed in a family home or in a public facility like a hospital, school or leisure centre, this lift makes life simpler for people with limited mobility. Its spacious platform comfortably accommodates a wheelchair and a companion, while features such as an audible signal and Braille-labelled buttons ensure that even those with visual impairments can use it independently. The design reflects a genuine commitment to inclusivity and independence.

Beyond its thoughtful design, the lift offers a host of practical benefits. It’s not only roomy and affordable, but also incorporates energy-saving technologies and a robust screw drive system that guarantees longevity. The lift is extremely versatile, with customisable platform dimensions and an installation process that is straightforward whether it’s fitted indoors, outdoors, between stairs or in an existing shaft.

  • Spacious design
  • Energy-saving technologies
  • Easy to install and maintain
  • Can be used in various locations
  • Customizable platform dimensions
  • Durable screw drive
Drive system: Screw & Nut
Nominal load 400 kg / 5 persons
Lifting speed: 0.15 m/sec (9 m/min)
Lifting height: Up to 13 meters
Number of stops (floors): Up to 6
Platform dimensions (length x width, mm) 1100 x 1400

1070 x 1485

1150 x 1485

*Other dimensions available
Dimensions of the shaft (length x width, mm 1500 x 1460

1460 x 1540

1540 x 1540

*custom measurements available
Door dimensions (width x height, mm) 900 x 2000 (when 1100 x 1400 platform)

940 x 2000* custom measurements available
Gates (width x height, mm) 900 x 1300 (when 1100 x 1400 platform)

940 x 1300
Door configuration Opens from the right or left, up to 3 doors per stop
Shaft walls: Steel metal or tempered glass panels
Standard colors RAL 9006 (light grey aluminum)
* lift can be painted in any RAL color
Smooth acceleration/deceleration: Standard equipment
Power supply: 220-230 V, 1 phase, 25A
380-400 V 3 phases, 16A, 50 or 60 Hz
Motor 2.2 kW
Noise level: Less than 70 dB
Control system Micro controller
Technical safety equipment Protective edge around the platform, emergency stop buttons on the platform and in the shaft, emergency stop switches, electronic speed control, overload detectors, door opening and locking control, screw shock absorber sensors, electronic engine operation control
European standard compliance: EN 81-41:2010,

EN 81-20:2020,

EN 81-58:2018

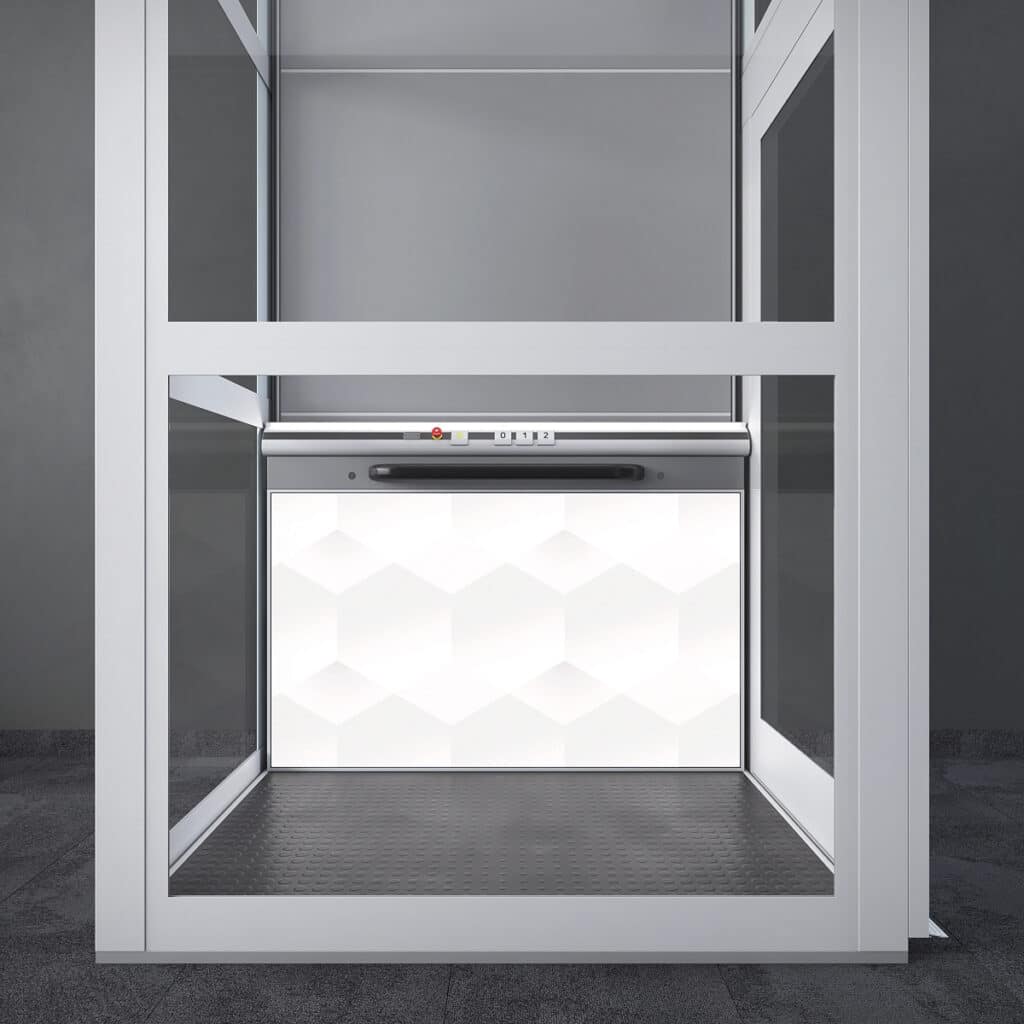

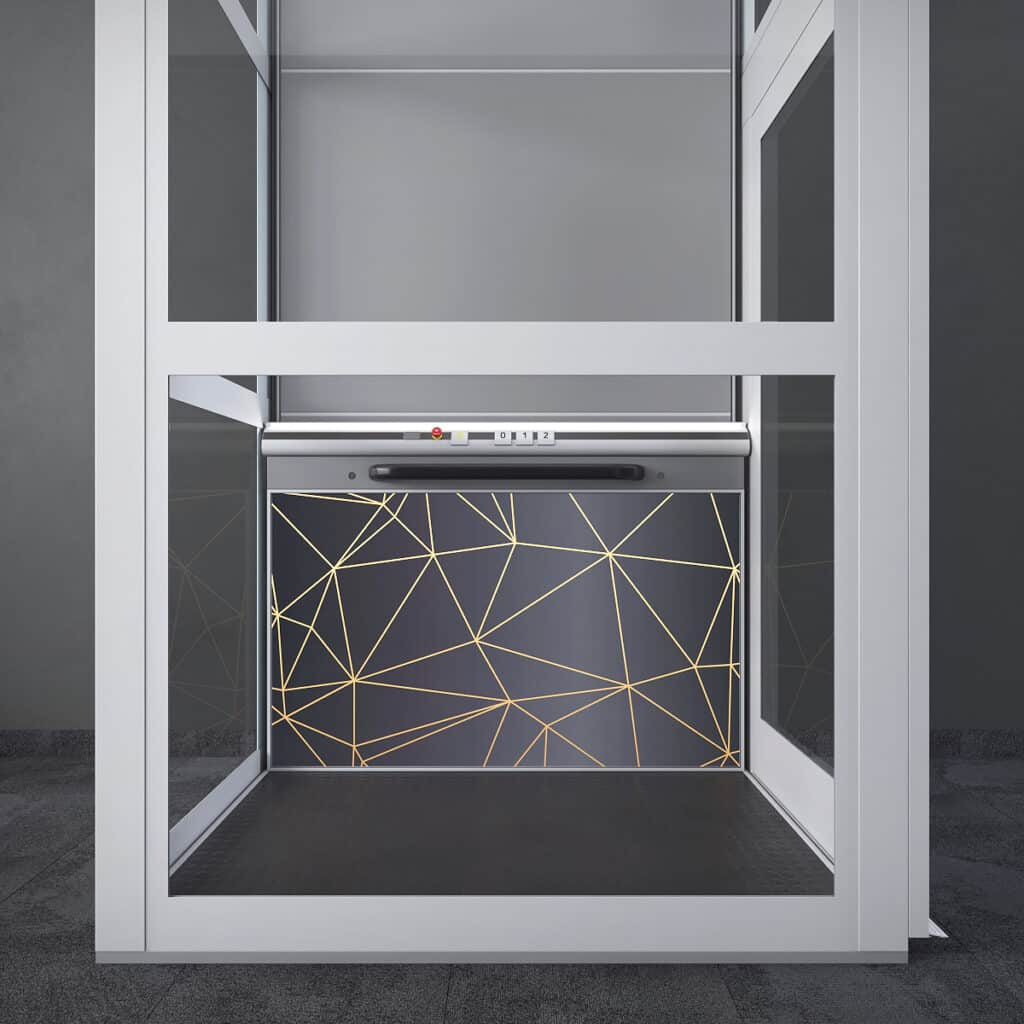

Panel Design options

BARDUVA was founded in 1996. The company specializes in the production of Vertical Platform Lifts, Open platform Lifts, Pergolas and Hangar Doors. Also always expanding to new products.

Continuous improvement, production capacity expansion, modern technologies and skilled workers’ efforts enable them to offer their production.

Get Your Free Barduva Lift Survey

Request a free survey and assessment from a Level 4-qualified Trusted Assessor to determine the right lift for you. You’ll receive a no-obligation quote based on not just your current needs but your future needs too.

Download the Barduva SB 200 Brochure
